AERO 500
Replica EV
AERO 500 Replica EV
The "replica" project has been transfered to PILOTCAR EV, Inc.
See http://enkaev.com/
for more details

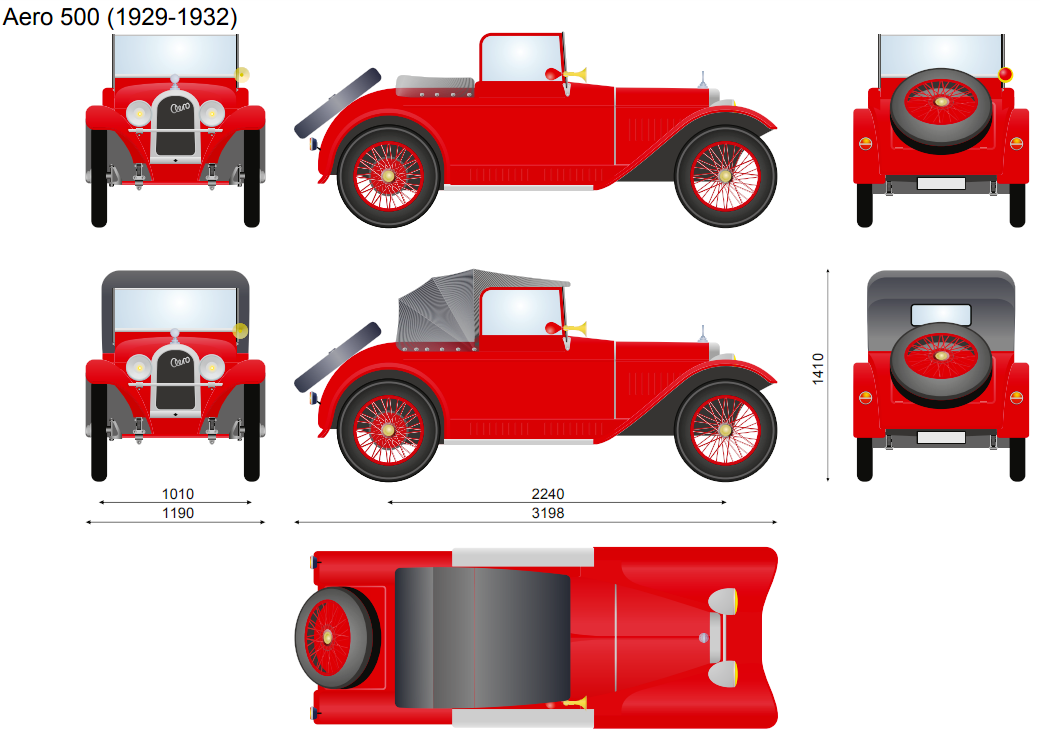

| Description | mm | Inches |
|---|---|---|
| •Overall Length | 3198 | 125.9 |
| •Overall Width | 1190 | 46.8 |
| •Overall Height | 1410 | 55.5 |
| •Wheelbase | 2240 | 88.1 |
| •Ground Clearance | 250 | 9.84 |
| •Front Track | 1010 | 39.7 |
| •Rear Track | 1010 | 39.7 |
| •Rims | 4"x 19" | |
| •Tires | 125/70R19 |
| Description | ||
|---|---|---|
| •Weight (standard car without options) |
645 kg | 1422 lb. |
| •GVWR (standard car without options) |
917 kg | 2022 lb. |
| •Maximum Load Capacity (Passengers and cargo) |
272 kg | 600 lb. |
| Description | ||
|---|---|---|
| •Motor | 3 Phase AC Induction | 10hp |
| •Transmission | 1 Speed | |
| •Electrical System (Traction) |
52 Volt DC | |
| •Steering | Rack and Pinion |
| Description | ||
|---|---|---|
| •Front Brakes | Self Adjusting | Hydraulic Disk |
| •Rear Brakes | Self Adjusting | Hydraulic Drum |
| Description | ||
|---|---|---|
| •Electrical System (Service) |
12 Volt DC | |
| •Battery (Service) |
12 Volt DC | 100Ah |
| •Electrical System (Traction) |
52 Volt DC | |
| •Battery (Traction) |
52 Volt DC | 210Ah |
| Description | ||
|---|---|---|
| •Range per Charge | 50 Miles | Combined |
| •Battery Capacity | 10 kWh | |
| •Top Speed | 45 MPH | |
| •Towing Capacity | ||
| •Trailer with Brakes | 500 kg | 1,102 lbs. |
| •Trailer without Brakes | 250 kg | 551 lbs. |
